Conrad GR-3 Plus Underground Imaging Device

The GR-3 product is an underground imaging device that detects differences under the soil and allows you to perform 3D analysis.
It allows you to detect, measure and locate buried metals, magnetic objects, and cavity structures such as graves, rooms and tunnels. Thanks to the specially prepared 3D Analysis software, it graphically displays magnetic (iron or steel) and non-magnetic (gold, silver or copper) metals. Depending on the target size (diameter) and soil structure, depths of up to 7 meters can be reached.

GR-3 is designed to be extremely simple and compact for everyone to use. It does not have any cables or heavy batteries. Thanks to its lightweight design, the user scans the ground and the data received during the scan appears instantly (real-time) on the screen of a mobile device such as a tablet or phone. The results on the screen can be analyzed immediately after the scanning and measurement process is completed. You can store the received data on your mobile devices such as a tablet or phone and evaluate it in detail again when necessary.

The depth and diameter (size) of the target (metal and/or cavity) can be quickly obtained thanks to the software options. The GR-3 product is a multi-purpose device and can be used easily in all types of terrain (ground) structures (sandy, rocky or clayey). There are two different models of the GR-3 product; GR-3 and GR-3 Plus. The GR-3 model has a high-precision single sensor system (CN-S Sensor)

 Wireless data transfer

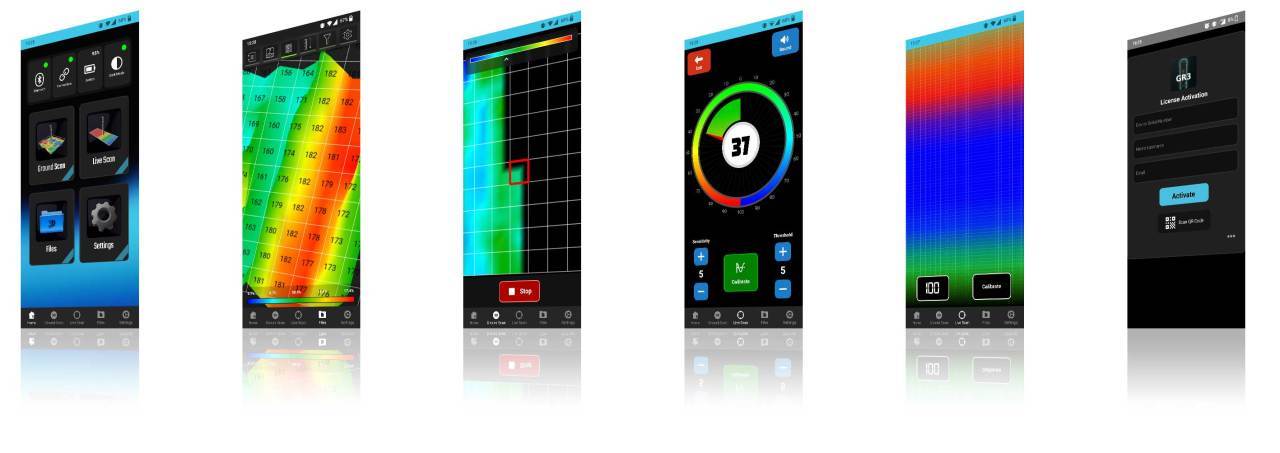

• Specially developed 3D Analysis application for Android and IOS

• Automatic and Manual, 3D Ground scanning function

• Live scanning and Pinpointer function

• Charging with 5 volt micro USB (can be charged with portable power sources)

Thanks to the live scan function; you can quickly detect underground objects graphically. You can easily and quickly detect objects without being tied to a specific search method.

With the Pinpointer function; it allows you to find the exact locations of objects. It enables detection from very deep places thanks to its special sensors developed in software and hardware.

CONRAD GR – 3 PLUS (TR VERSION)
System	3D Ground scanner
Sensor technology	CN-D Dual Sensor Technology (Gradiometer) ± 2000 µT
CPU	240 Mhz CPU - 12-bit A/D converter
Depth	Up to 7 meters depth *
Scan modes	Automatic – Manual – Live Scan – Pinpointer
3D Analysis Application	Conrad GR-3 Android & IOS Analysis program
Language	Turkish
Battery	3.7V Li-ion Rechargeable battery
Working hours	Approximately 8 hours
Wireless Connection	Bluetooth 4.2 BLE
Working temperature	0ºC - 70ºC
Storage conditions	-20ºC - 60ºC
Guarantee	2 Years
Weight	Approximately 600 grams
Dimension	810 x 70 x 70mm
Charge input voltage	5 Volts – 2 A

* Depth values vary depending on soil type and size of buried object. The values given are maximum values.

Gr-3 Plus Underground Imaging Device Package contents;

- Device main unit
- 5 volt charging adapter and charging cable
- Carrying case
- User manual
- Warranty certificate

---
