Garrett Multi Zone™ Kapı Dedektörü

Garrett Multi Zone™ Walkthrough Metal Detector

Fast, Easy, Versatile Security
Correct Goal Setting.
Precise Multi-Zone Detection: 20 zones precisely pinpoint multiple objects simultaneously.
Bright LED Indicators: Visual signals on both panels make it easy to identify threats.

Portable Protection.
Quick Setup: Optional casters and battery module for quick setup and mobility.
No Need for Cables: Easily transportable and installed in different locations.

The twenty zones of the Multi Zone precisely locate one or more objects simultaneously. Multiple targets are indicated simultaneously on both switching panels via bright LED zone indicators.

Don't Stay in the Dark
A 1-hour emergency backup battery module is included in case of power outage or AC power disconnection. A 10-hour battery is also available.
Equipped with optional casters and battery module, Multi Zone can be quickly set up at special events, schools and other large venues.
No need to bother with cables. Easy to move to another location in a jiffy.

Optimum Performance
More than 15 application programs designed to meet the needs of schools, airports, prisons, courthouses, special events and other applications.
20 Zone Sensitivity
Multi Zone's twenty zones precisely locate one or more objects simultaneously.
Directional Counter
With four counting settings: forward, reverse, subtraction in reverse direction and bidirectional counting.
Networking Capability
Manage individual or group transitions over the network and perform statistical analysis with the iC Module.
Automatic Scan Function
Multi Zone scans the electromagnetic environment and selects the most appropriate frequency for interference cancellation.
Superior Versatility
Field programmable to allow for system upgrades. Provides environmental protection against wind, rain and dust.
Advanced Access Control
Tamper-proof detector controls with 5-digit alpha/numeric system with 60 million code combinations. Additional security measures include programmable keypad restriction and key secured in lockable cabinet.
User Friendly Menu Design
The 32-character menu prompts are easy to understand (i.e., no confusing codes or acronyms to memorize).

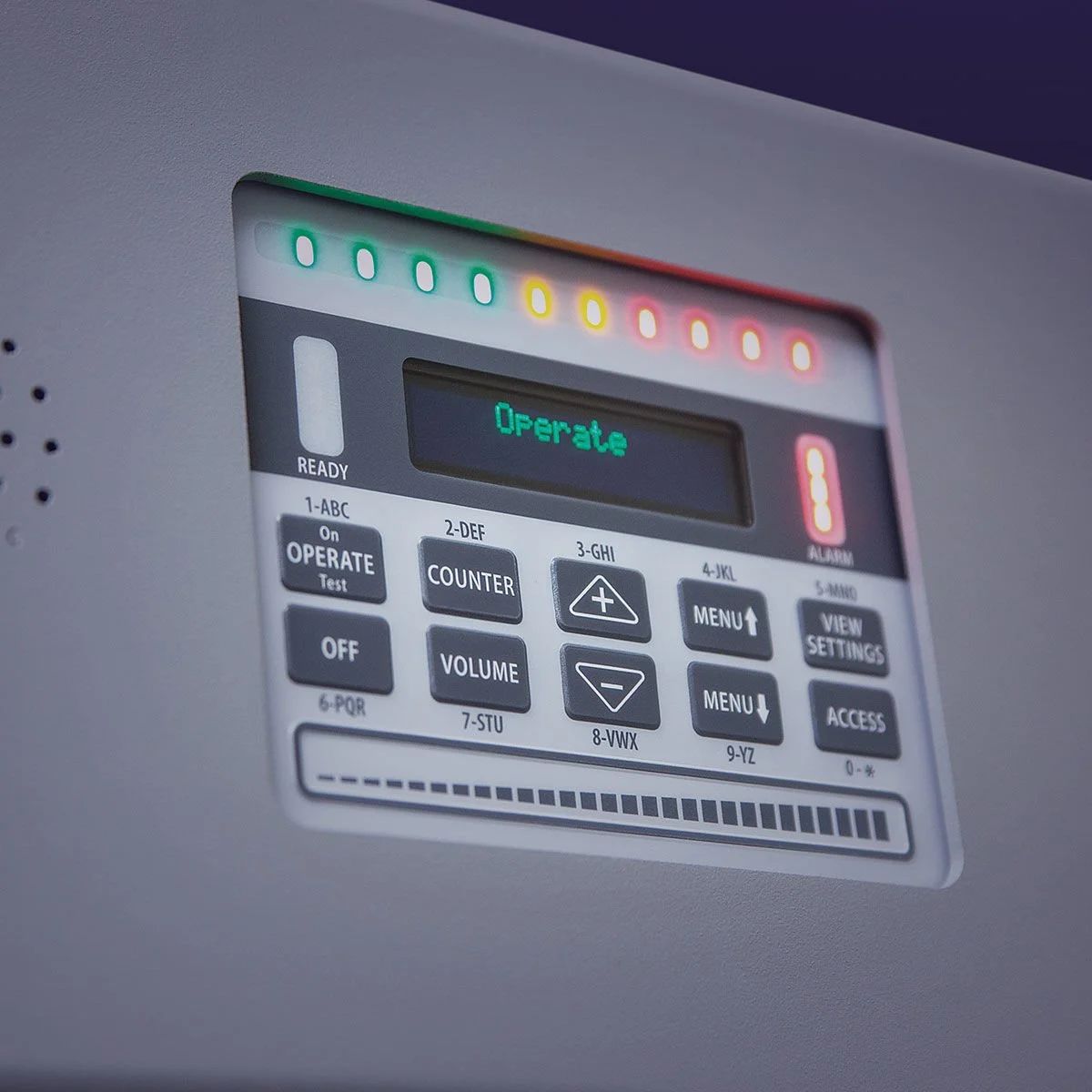

Bright LED Indicators
Green and red status lights and zone indicators at eye level are highly visible, even in direct sunlight.
Internal SD Media Port
For software updates.
Advanced Synchronization
Advanced circuitry allows multiple detectors to be installed as close as 2 inches apart.
Unique Scroll Bar
Used to quickly adjust the value of a setting.

Garrett detectors, pinpointers and search coils now come with a 3-Year Warranty.

	PD6500i ™ For maximum performance	Multi-Zone ™ Powerful and budget-friendly
Detection Zones	33 zones (left, right and center); visual and audible alarms with internal dry contact alarm relay	20 independent zones; visual and audible alarms
Multi-Unit Synchronization	Synchronization with wired AC power lines or manual frequency selection for wireless operation	Synchronization with wired AC power lines or manual frequency selection for wireless operation. Automatic frequency scanning for wireless operation
Visual Indicators	LED zone indicator lights on both panels. Tempo lights with intuitive displays on input side only.	LED zone indicator lights on both panels. Individually configurable as status lights, tempo lights, ready/alarm lights or disabled.
Access Control	Eight-button keypad with numeric codes. Keypad lock is used to control access and enable/disable the keypad.	Ten button operation with full alpha-numeric 5 digit access code. Controlled by a rocker switch keyed into the detector head to enable and disable the keypad.
Passageway Internal Dimension	Width 30" (0.76 m)Height 80" (2.03 m)Depth 23" (0.58 m)(32” versions also available)	Width 30" (0.76 m)Height 80" (2.03 m)Depth 23" (0.58 m)(32” versions also available)
General External Dimensions	Width 35" (0.90 m)Height 87" (2.21 m)Depth 23" (0.58 m)	Width 35" (0.90 m)Height 87" (2.21 m)Depth 23" (0.58 m)
Shipping Size	Width 35.5" (0.90 m)Height 91.5" (2.32 m)Depth 6.25" (.16 m)	Width 35.5" (.90 m)Height 91.5" (2.32 m)Depth 6.25" (.16 m)
Shipping Weight	165 lbs. (74 kg)	151 lbs. (68.5 kg)
Working Temperatures	-4º F (-20º C) to +149º F (65º C); Up to 95% humidity, non-condensing.	-4º F (-20º C) to +140º F (60º C); Up to 95% humidity, non-condensing.
Strength	Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, replacement or adjustments required.	Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, replacement or adjustments required. 1-hour battery backup for MultiZone included.
Regulatory Information	Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compliance Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.	Meets Electrical Safety and Compliance Requirements for CE, FCC, CSA, IEC, ICNIRP, and IEEE. Additional certifications pending.
Weather Resistance	Provides protection against moisture and foreign matter in accordance with IP 55, IP 65, IEC 529 Standards.	IP 55 provides protection against moisture and foreign matter in accordance with IEC 529 Standards.
Structure	Attractive laminate that is scratch and abrasion resistant. Fixing Heads and Support: heavy duty aluminum.	Attractive laminate that is scratch and abrasion resistant. Fixing Heads and Support: heavy duty aluminum.
Control Outputs	Solid state switches to operate low voltage AC or DC for external alarms and control devices.	Optional Relay module connected via RS 485 cable provides NO/NC relay contact.
(optional) Remote Control	Desktop Remote Control with Zone Display; PC with wired or wireless iC Module; or IR remote control	Desktop Remote Control with Zone Display; PC with wired or wireless iC Module; or IR remote control
(optional) Network Connection	Manage individual or group transitions and perform transition analysis with wired or wireless iC Module and client software.	Manage individual or group transitions and perform transition analysis with wired or wireless iC Module and client software.
Guarantee	36 months, limited parts and labor	36 months, limited parts and labor
