Gepard GPR

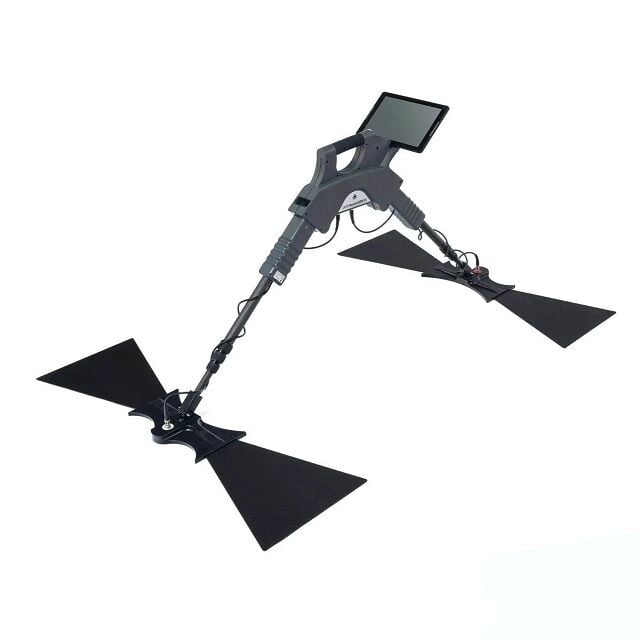

It is a flexible, portable and powerful underground imaging radar for detecting underground objects such as pipelines, voids, cables, conduits, tunnels, bunkers. Gepard GPR underground imaging radar uses an omnidirectional unshielded transmission system that is capable of capturing signals at maximum depth (up to 40m).

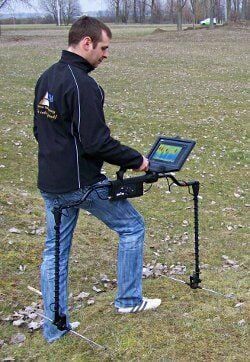

This light, agile and compact unit can be easily operated by a single operator. The radar sends a signal underground and waits for a counter signal from the underground for the following findings; Underground walls, basements and concrete reinforcements hidden cavities, graves and tombs, water levels and underground rivers and underground water basins buried pipelines, channels and cable installations backfill wells, galleries, trenches and underground shelters septic tanks, distribution boxes and drainage pipes hidden tunnels, bunkers and shelters buried treasure chests, statues and hidden places The Gepard underground imaging radar uses multiple transmission frequency ranges from 60MHz to 300MHz, realized with adjustable telescopic antennas.

Additionally, Gepard ground radar supports many automatic adjustments to optimize ground survey on specific soil types, making its use very easy.

Discoveries in the Templar Church and Surroundings in Poland

You can simply set the depth resolution and start searching. The data measured and obtained by the ground penetrating radar is directly transferred to the Android Tablet PC. The Android software receives data via Bluetooth. The software has the ability to integrate GPS signals, create Google Maps, automatic filtering and take notes to remember specific scan details later. In addition, the automatic filtering feature is useful for improving scan results and finding hidden objects and structures more easily. Thanks to the integrated GPS, all scan positions can be stored together with the scan data.

Alternative Accessories for Gepard Ground Imaging Radar

60 MHz GPR Antenna: The 60 MHz antenna is an extremely robust antenna that allows geophysical measurements at great depths. This alternative GPR antenna penetrates much deeper than the 100 MHz antenna and is used especially to detect larger objects lying at depths below the ground.

100 MHz GPR Antenna: The 100 MHz antenna is robust and stable, and is capable of high-resolution measurements. Unlike the 60 MHz antenna, the 100 MHz antenna is especially good at finding small objects underground.

OKM Battery Pack: You can also use the OKM battery pack instead of AAA batteries when using the Gepard GPR ground-penetrating radar. In this way, you can use the ground-penetrating radar for up to 10 hours without changing the batteries every 3 hours.

Technical Specifications:

Control Box:
· Operating temperature: -20 °C - 55 °C
Storage temperature: -25 °C - 70 °C
· Air humidity: 5% - 75%
· Water resistance: None.
· Dimensions: (Height x Width x Depth): 350 x 182 x 60 mm
Weight: Approximately 1700g
· Voltage: 9.6 – 13.2 VDC, 18 W
· Operating time (alkaline battery, 25 °C): approximately 6 hours
· Operating time (accumulator batteries, 25 °C): approximately 3 hours
· Working time (OKM power supply 25 °C): approx. 10 hours
